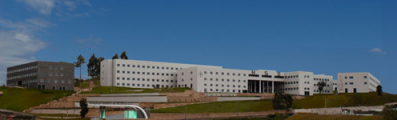

The “Hospitals Senhor do Bonfim” (HSB) is a private health care institution. The institution consists of several residence units, hospitals, outpatient services, and health facilities and is spread over a sprawling estate of 13 hectares (48,194 m²). In total, there are eight stand-alone buildings with a capacity of 525 beds for medical services, with a focus in the fields of Geriatrics, Pediatrics, Neurology, and Psychiatry. The areal further includes the Chapel of Our Lord of Bonfim, central kitchens and restaurants, general stores, a pharmacy, general services, and a reception.
The buildings are equipped with modern and innovative facilities at national and European level that were built with excellent materials. Many of them are used for the first time in Portugal.
The systems were installed and implemented by the LOYTEC systems integrator RACE. The integral solution with LOYTEC components includes the following features:
- Control of the smoke extraction system
- Monitoring of the fire dampers position
- Central production and distribution of hot and cold water
- Integration of the climate control system via Modbus
- Control of the ventilation system
- Control of clean rooms
- Measurement of thermal and electrical energy
Interesting Facts
Devices: LINX-220, LINX-210, LIOB-150, LIOB-151, LIOB-152, LIOB-153, LVIS-ME212, L-MBUS
| Location | Vila do Conde, Portugal |
| Number of Nodes | 155 |
| Topology | BACNET MS/TP, Lonworks FT10, IP network, Modbus RTU, M-Bus |
| Companies involved | RACE, Hospitals Senhor do Bonfim |
| LOYTEC Components | 4 x LINX-220, 4 x LINX-210, 34 x LIOB-150, 28 x LIOB-151, 1 x LIOB-152, 5 x LIOB-153 , 3 x LVIS-ME212, 1 x L-MBUS |
| LOYTEC Tools |
LWEB-900 |
