The L-MBUS level converters are used to connect an M-Bus network to a L‑INX Automation Server, L‑ROC Room Controllers L‑GATE Gateway, or a LIOB‑586/587/588/589 I/O Controllers. Up to 20 or 80 M-Bus devices can be connected via L-MBUS20 or L-MBUS80.
TTL Connection

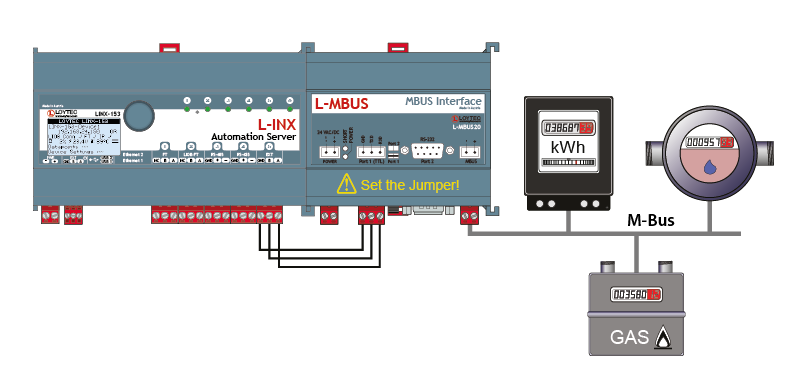

The TTL port is used to connect the L-MBUS to the EXT port of L -INX Automation Servers, L -ROC Room Controllers, and also to the L-GATE Gateways. The interface is galvanically isolated.
M-BUS Level Converter Products | |

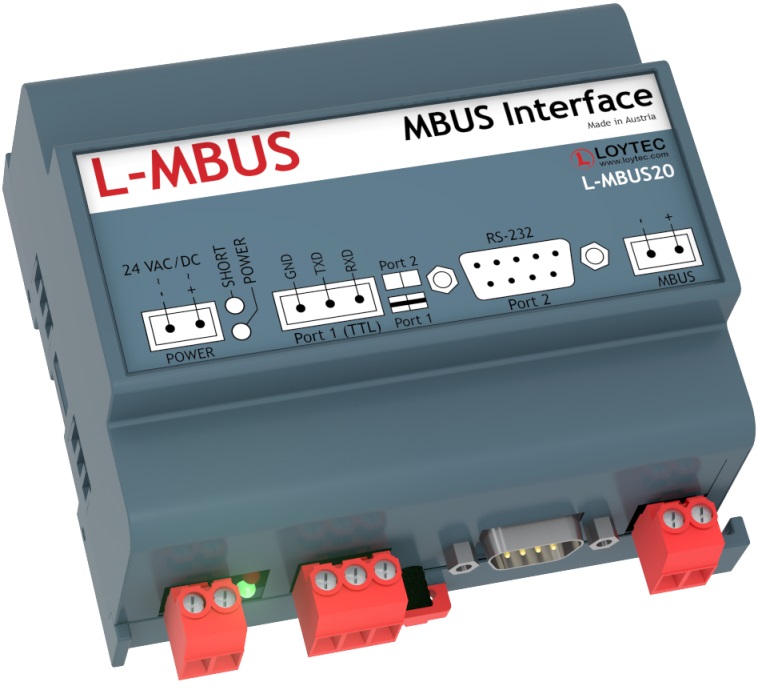

L-MBUS20 | |
 | M-Bus level converter, interface for 20 M-Bus devices |
 Start quote request Documentation and Software | |
 3D View | |
e652d00e44a64759a08508e069015c22 | |
L-MBUS80 | |
 | M-Bus Level Converter, Interface for up to 80 M-Bus devices |
| Start quote request Documentation and Software | |
| 3D View | |
d0a18d275fe64135826638032b3223e9 | |
L-CABLE1 | |

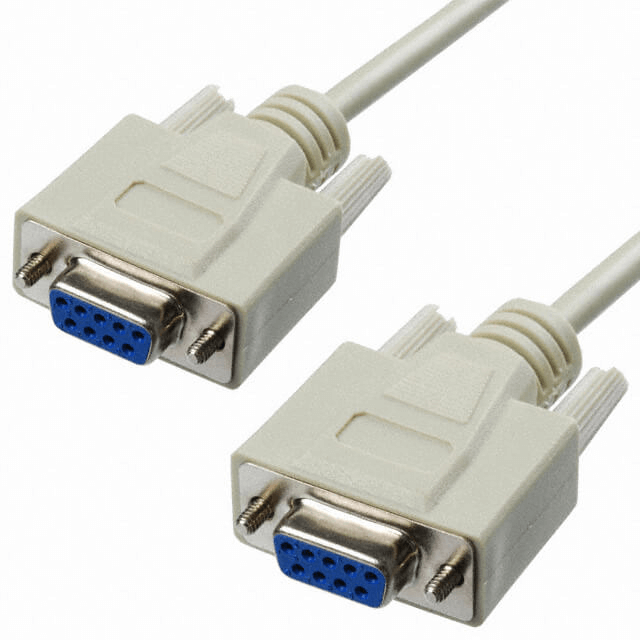

 | Connection cable between LINX‑x0x or LINX‑x1x Automation Server and L-MBUSx0 M-Bus level converter |
| Start quote request Documentation and Software | |
