LIOB-Connect I/O Modules

The LIOB‑10x/11x I/O Modules extend L‑INX Automation Servers, L‑ROC Room Controllers, and L-IOB I/ O Controllers with physical inputs, outputs or bidirectional I/Os. Several models with different I/O configurations are available.

LIOB-Connect

The LIOB‑10x/11x Modules have gold-plated connectors (LIOB‑Connect) to string multiple devices together and connect them to the L‑INX, L‑ROC or LIOB-586/587/588/589. These controllers automatically recognize the LIOB‑10x/11x I/O Modules and provide the resulting data points.

Local Operation and Override

All L-IOB I/O Modules are equipped with an LCD display (128x64) with backlight and jog dial for manual local operation. Device and data point information is displayed in text form and via graphical symbols.

Features

• I/O module with physical inputs, outputs or bidirectional I/Os configurable as either input or output
• Connected to the L-INX Automation Server, L-ROC Room Controller or L-IOB I/O Controller via LIOB‑Connect
• Manual operation using the jog dial
• 128x64 graphic display with backlight
• Local access to information about device status and data points in clear text and symbols
• Automatic integration into device configurations with L-INX, L-ROC, and L-IOB I/O Controller
• Easy device replacement without any additional software

LIOB-Connect I/O Modules Products
LIOB-100
	LIOB-Connect I/O Module: 8 UI, 2 DI, 2 AO, 9 DO (5 x Relay 6 A, 4 x Triac 0.5 A)
	Start quote request Documentation and Software
	3D View

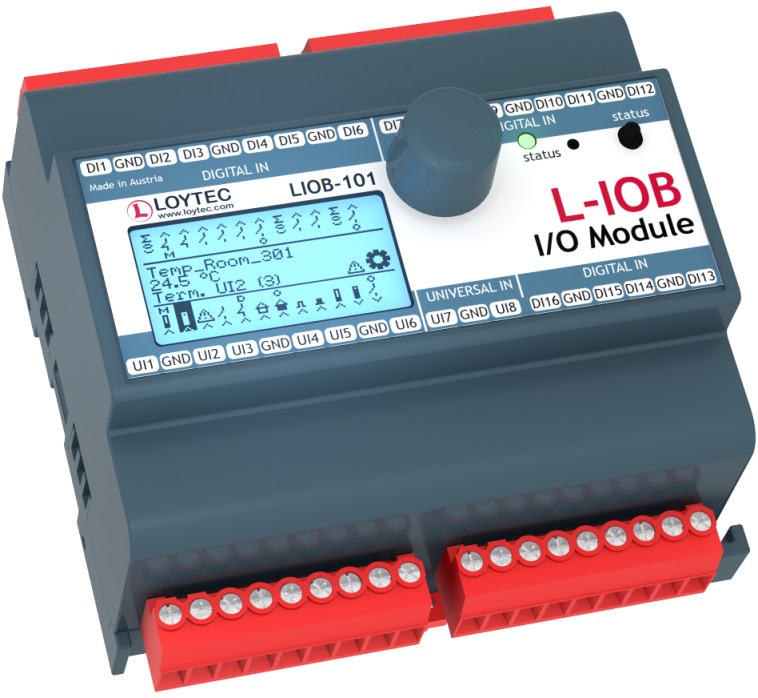

LIOB-101
	LIOB-Connect I/O Module: 8 UI, 16 DI
	Start quote request Documentation and Software
	3D View

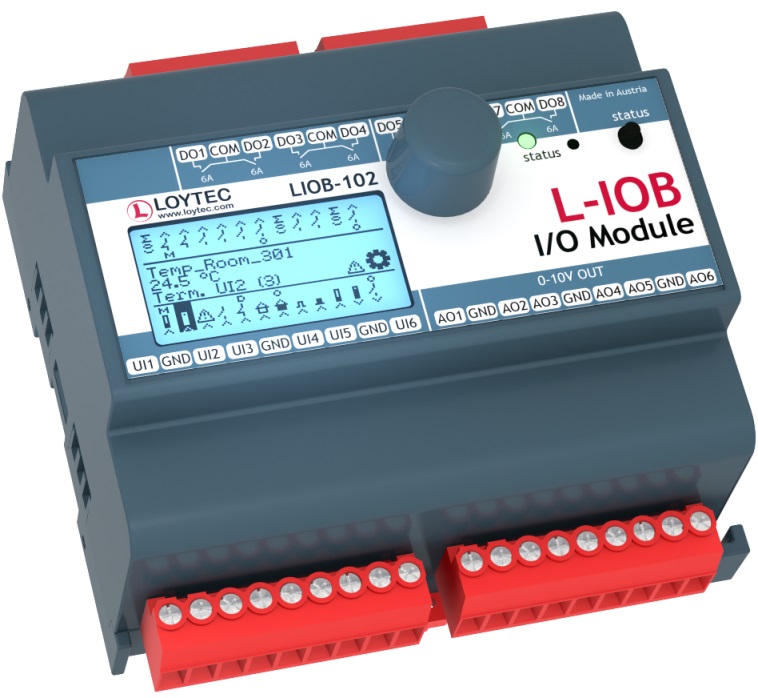

LIOB-102
	LIOB-Connect I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A)
	Start quote request Documentation and Software
	3D View

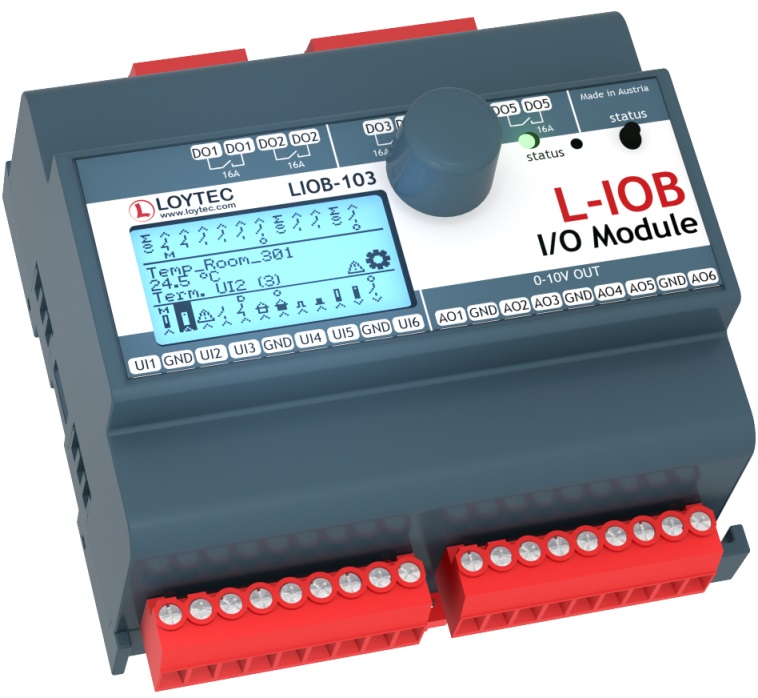

LIOB-103
	LIOB-Connect I/O Module: 6 UI, 6 AO, 5 DO (5 x Relay 16 A)
	Start quote request Documentation and Software
	3D View
LIOB-110
	LIOB-Connect I/O Module: 20 Universal I/O (IO)
	Start quote request Documentation and Software
	3D View
LIOB-112
	LIOB‑Connect I/O Module: 40 Universal I/O (12 optionally with 4-20 mA Current Output)
	Start quote request Documentation and Software
	3D View

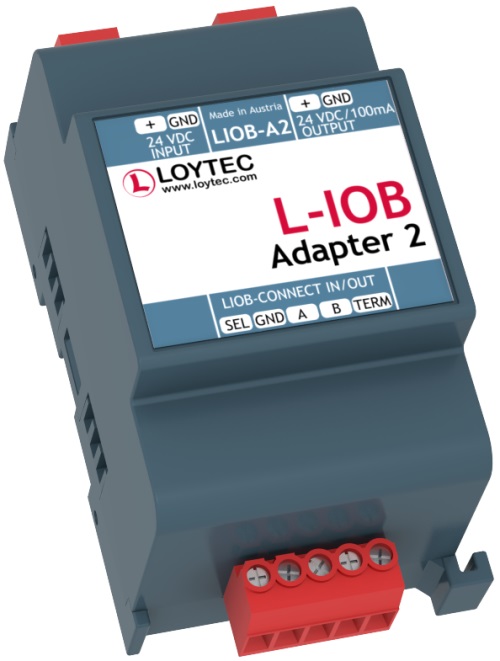

LIOB-A2
	L‑IOB Adapter 2 to split the LIOB‑Connect bus using 4-wire cables
	Start quote request Documentation and Software
	3D View

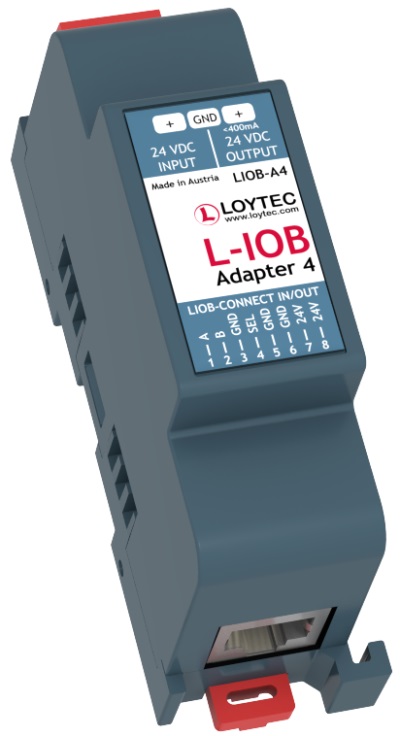

LIOB-A4
	L‑IOB Adapter 4 to split the LIOB‑Connect bus using RJ45 network cables
	Start quote request Documentation and Software
	3D View
LIOB-A5
	L‑IOB Adapter 5 to terminate the LIOB-Connect bus
	Start quote request Documentation and Software
	3D View
LPOW-2415A
	LIOB-Connect Power Supply, 24 VDC, 15 W
	Start quote request Documentation and Software
	3D View
LPOW-2415B
	Power supply unit with power connector 24 VDC, 15 W
	Start quote request Documentation and Software
	3D View
LPOW-2460B
	Power supply unit with power connector 24 V DC, 60 W
	Start quote request Documentation and Software
	3D View
L-TEMP2
	External temperature sensor (NTC10K) for use with L-IOB Universal Inputs
	Start quote request Documentation and Software
