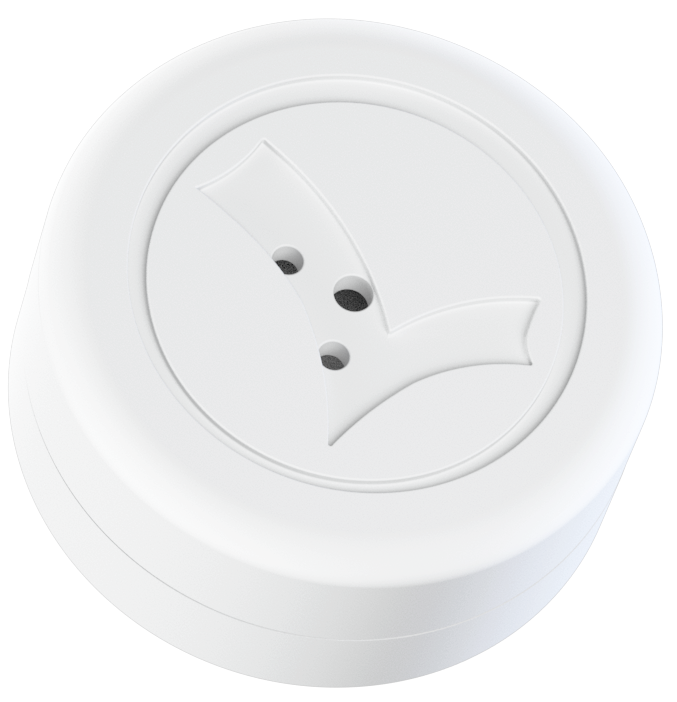

LOYBT-TEMP1 Bluetooth Mesh Temperature Sensor

The LOYBT-TEMP1 / LOYBT-TEMP2 Bluetooth sensor is a battery powered sensor for measuring environmental properties like room temperature and relative humidity. It acts as a low‑power node in a Bluetooth Mesh network and publishes sensor data on change of value as well as periodically.

The device allows to perform measurements at the location of your choice and after adding the sensor to a LOYTEC Controller the sensor data is automatically mapped to the system registers room temperature and humidity. The type LOYBT-TEMP2 additionally offers presence detection based on an integrated vibration sensor. Vacant and occupied workspaces can be determined if the sensor is placed properly, e.g. by being mounted on the backside of a chair.

A device wake up can be forced by pressing the service button. After wake up the LOYBT-TEMPx will perform one of the following actions: if the device is not a member of a Bluetooth Mesh network it will start broadcasting an unprovisioned mesh beacon, if no friendship relation is established it will try to find a friend, and otherwise it will simply start transmitting sensor data.

A service button press is always acknowledged by blinking of the status LED. The LED is also used to indicate power-up and firmware update procedure.

Features

LOYBT-TEMP1 Bluetooth Mesh Temperature Sensor Products
LOYBT-TEMP1
	Bluetooth Mesh temperature sensor (5 pieces per package)
	Start quote request Documentation and Software
	3D View
LOYBT-TEMP2
	Bluetooth Mesh temperature and vibration sensor (5 pieces per package)
	Start quote request Documentation and Software
	3D View
