The L-INX Automation Servers LINX-202 and LINX-203 (successors of LINX-200, LINX-201) can host user specific graphical pages for the visualization of informationen from BACnet networks via LWEB-900 (Building Management) or LWEB-802/803. They can integrate physical I/Os through L-IOB I/O Modules via LIOB-Connect, LIOB-FT, or LIOB-IP. Local operation and override is provided by the built-in jog dial and the backlit display (128x64 pixels). Device and data point information is shown on the display via symbols and in text format.
BACnet can be integrated via BACnet/IP, BACnet/SC or BACnet MS/TP. In addition, the Automation Servers provide connectivity to concurrently integrate KNX, Modbus, and M-Bus and connect as a gateway data points of different technological origin. Optionally, mathematical objects can be applied within a connection to calculate the data point output values depending on the formula used. Depending on the type, the Automaton Servers feature a BACnet/SC router, BACnet/IP router including BBMD as well as Slave-Proxy functionality (LINX-203). LINX-202 and LINX-203 are BTL certified as B-BC (BACnet Building Controller).
The gateway functionality allows data communication between all communication technologies available on the device. Different technology data points are mapped through Local Connections on the device. The mapping of different technology data points on distributed devices is supported by Global Connections. L-INX Automation Servers also support Smart Auto-Connect™ – the automatic generation of connections to substantially reduce engineering efforts and cost. All technology data points are automatically created as OPC XML-DA and OPC UA data points.
Each L-INX Automation Server is equipped with two Ethernet ports. It can either be configured to use the internal switch to interconnect the two ports or every port is configured to work in a separate IP network.
When the Ethernet ports are configured for two separate IP networks, one port can be connected for instance to a WAN (Wide Area Network) with enabled network security (HTTPS) while the second port can be configure to be connected to an insecure network (LAN) where the standard building automation protocols like BACnet/IP, LON/IP, or Modbus TCP are present. These devices also feature firewall functionality of course to isolate particular protocols or services between the ports. The built-in VPN function provides for simple VPN setup and secure access to remote sites. The LTE-800 interface enables wireless access to remote sites through a mobile carrier.
Using the internal switch, a daisy chained line topology of up to 20 devices can be built, which reduces costs for network installation. The IP switch also allow the setup of a redundant Ethernet installation (ring topology), which increases reliability. The redundant Ethernet topology is enabled by the Rapid Spanning Tree Protocol (RSTP), which is supported by most managed switches.
The L-INX devices provide fully featured AST™ functionality (Alarming, Scheduling, and Trending) and can be integrated perfectly into the L-WEB System.
IoT Integration
The IoT function (Node.js) allows connecting the system to almost any cloud service, either for uploading historical data to analytics services, delivering alarm messages to alarm processing services or operating parts of the control system over a cloud service (e.g., scheduling based on Web calendars or booking systems). Processing Internet information such as weather data in forecast-based control is also possible. Finally, the JavaScript kernel also allows implementing serial protocols to non-standard equipment in primary plant control.
Features
- Visualization of customized graphical pages through LWEB‑900 (building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
- Stores customized graphical pages
- Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑11x/Ax, LIOB‑15x, and LIOB‑55x)
- 128x64 graphic display with backlight
- Local and remote access to information about device status and data points
- Manual operation using the jog dial or VNC client
- Alarming, Scheduling, and Trending (AST™)
- Node.js* support for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)
- Event-driven e-mail notification
- Math objects to execute mathematical operations on data points
- Integrated OPC XML-DA and OPC UA server
- Dual switched or separated Ethernet ports
- Access to network statistics
- Compliant with ANSI/ASHRAE–135‑2012 and ISO 16484‑5:2012 standard
- Supports BACnet MS/TP, BACnet/IP or BACnet/SC
- BACnet Client Function (Write Property, Read Property, COV Subscription)
- BACnet Client Configuration with configuration tool (scan and EDE import)
- B-BC (BACnet Building Controller) functionality, BTL certified
- Integrated BACnet/ IP to BACnet/SC and BACnet MS/ TP
Router including BBMD as well as Slave-Proxy functionality (LINX‑203 only) - KNXnet/IP, connection to KNX TP1 through LKNX-300 Interface
- M-Bus Master according to EN 13757-3, connection via optional M‑Bus Converter (L‑MBUS20 or L‑MBUS80)
- Modbus TCP and Modbus RTU/ASCII (Master or Slave)
- Gateway functions including Smart Auto-Connect™
- Integrated web server for device configuration and monitoring data points
- Configurable via Ethernet/IP
- Connection to EnOcean wireless devices via LENO-80x Interface
- Supports WLAN through LWLAN-800 Interface
- Supports LTE through LTE‑800 Interface
- Supports MP-Bus through LMPBUS‑804 Interface
- Stores user-defined project documentation
*requires L-IOT1 software license
Tutorials
Features of L-INX 8.0 Release
This video presents some features of the new firmware release.
How to operate a scheduler on the web interface of a L-INX Automation Server [A004]
This tutorial describes how to use the Web UI of the L-INX Automation Server.
How to use e-mail configuration [A007]
This tutorial describes how to configure the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create trend objects [A008]
This tutorial describes how to create trend objects on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create schedulers on BACnet devices [A201]
This tutorial describes how to create schedulers on BACnet devices on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create a calendar on BACnet devices [A202]
This tutorial describes how to create a calendar on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create a remote scheduler on BACnet devices [A205]
This tutorial describes how to configure the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create alarms on BACnet devices [A206]
This tutorial describes how to create alarms on the L-INX Automation Server with the configuration tool L-INX Configurator.
Manual creation of BACnet Server Objects [B201]
This tutorial describes how to create BACnet Server Objects manually on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create client mappings using network scan [B202]
This tutorial describes how to create client mappings using network scan on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create client mappings using EDE file import [B203]
This tutorial describes how to configure the L-INX Automation Server with the configuration tool L-INX Configurator.
Quick start scenario creating an L-WEB project [W001]
This tutorial describes how to create an L-WEB project and configure the L-INX Automation Server with the configuration tool L-INX Configurator.
A quick start scenario creating an L-WEB database [W002]
This tutorial describes how to create a database with the LWEB Server and the configuration tool L-INX Configurator on the example of configuring the L-INX Automation Server.
How to create data points using M-Bus Network Scan [L001]
This tutorial describes how to create data points using M-Bus Network Scan on the L-INX Automation Server with the configuration tool L-INX Configurator.
How to create and use M-Bus device templates [L002]
This tutorial describes how to create and use M-Bus device templates on the L-INX Automation Server with the configuration tool L-INX Configurator.
LINX-202/203 Automation Server BACnet Products | |
LINX-203 | |
| BACnet Automation Server with LIOB-Connect, B-BC, and built-in BACnet/IP to MS/TP Router |
 Start quote request Documentation and Software | |
 3D View | |
58676d2580714e69bcfc125523e5cb43 | |

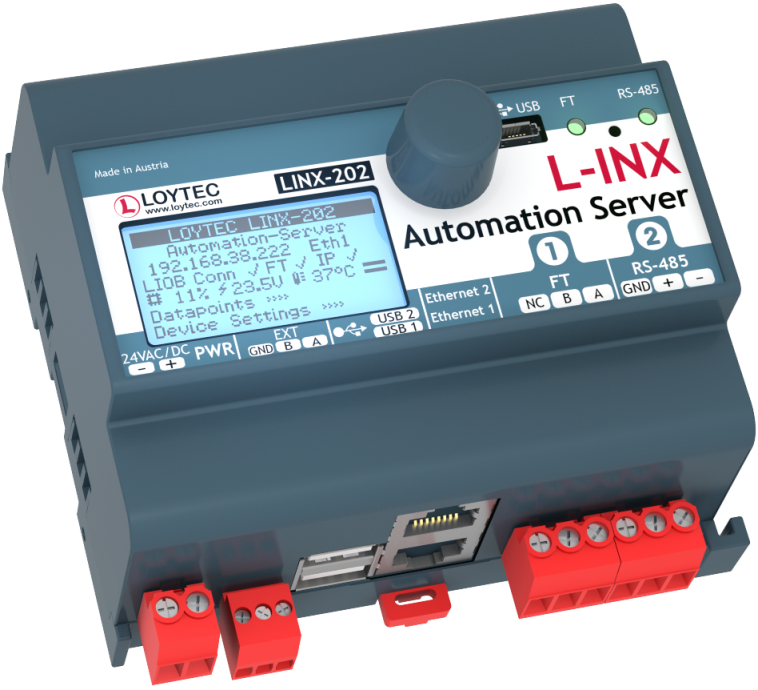

LINX-202 | |
| BACnet Automation Server with LIOB-Connect, B-BC |
| Start quote request Documentation and Software | |
| 3D View | |
3e0b47a805b548c281d02196f784cafb | |
L-IOT1 | |
 | Add-on Software License to enable IoT functionality on LIOB-585/586/587/588/589, LIOB-590/591/592/593/594/595/596, LIOB-AIR, and LINX-102/103/202/203 |
| Start quote request Documentation and Software | |
LIOB-A2 | |
 | L‑IOB Adapter 2 to split the LIOB‑Connect bus using 4-wire cables |
| Start quote request Documentation and Software | |
| 3D View | |
6270d50d08a74b69ab8be97bca242b29 | |
LIOB-A4 | |
 | L‑IOB Adapter 4 to split the LIOB‑Connect bus using RJ45 network cables |
| Start quote request Documentation and Software | |
| 3D View | |
798babbffc92440b8bdb6445698fa381 | |
LIOB-A5 | |
 | L‑IOB Adapter 5 to terminate the LIOB-Connect bus |
| Start quote request Documentation and Software | |
| 3D View | |
3923a39c788f4a42b55a246006327dc1 | |
LIOB-100 | |
 | LIOB-Connect I/O Module: 8 UI, 2 DI, 2 AO, 9 DO (5 x Relay 6 A, 4 x Triac 0.5 A) |
| Start quote request Documentation and Software | |
| 3D View | |
a0bf19dfbe784dbaa9cd8f9cdb98c09d | |
LIOB-101 | |
 | LIOB-Connect I/O Module: 8 UI, 16 DI |
| Start quote request Documentation and Software | |
| 3D View | |
2f6e616c155041cdbe1aaa96984fb8f6 | |
LIOB-102 | |
 | LIOB-Connect I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A) |
| Start quote request Documentation and Software | |
| 3D View | |
f8d461e56b73471bb2bd3e989c647829 | |
LIOB-103 | |
 | LIOB-Connect I/O Module: 6 UI, 6 AO, 5 DO (5 x Relay 16 A) |
| Start quote request Documentation and Software | |
| 3D View | |
3580ef64d7224d58b0b8df422b0e33aa | |
LIOB-110 | |
 | LIOB-Connect I/O Module: 20 Universal I/O (IO) |
| Start quote request Documentation and Software | |
| 3D View | |
fc37c4e2d8334dc9a4008a93fdeed68b | |
LIOB-112 | |
 | LIOB‑Connect I/O Module: 40 Universal I/O (12 optionally with 4-20 mA Current Output) |
| Start quote request Documentation and Software | |
| 3D View | |
a4c0124f6524494b937e4a77bdc9a9cf | |
LIOB-150 | |
 | LIOB-FT I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A) |
| Start quote request Documentation and Software | |
| 3D View | |
e8af7c6b82b54b7f8dee3c61d3cb99d5 | |
LIOB-151 | |
 | LIOB-FT I/O Module: 8 UI, 12 DI |
| Start quote request Documentation and Software | |
| 3D View | |
5589833098ec4e57ab8a09b1e6be3318 | |
LIOB-152 | |
 | LIOB-FT I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A) |
| Start quote request Documentation and Software | |
| 3D View | |
9e4a0bcbc7d54da0af20dd7f4d082862 | |
LIOB-153 | |
 | LIOB-FT I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A) |
| Start quote request Documentation and Software | |
| 3D View | |
ec9fdbf9b98f4c7e9a31b151785763bf | |
LIOB-154 | |
 | LIOB-FT I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor |
| Start quote request Documentation and Software | |
| 3D View | |
e803e995b7c94953852eac4c8840d00c | |
LIOB-550 | |
 | LIOB-BIP I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A) |
| Start quote request Documentation and Software | |
| 3D View | |
e3cb2c23d25743a9a5e08e738e4d98b4 | |
LIOB-551 | |
 | LIOB-BIP I/O Module: 8 UI, 12 DI |
| Start quote request Documentation and Software | |
| 3D View | |
67b4415097fe4bf58d9e7b2d72bf072a | |
LIOB-552 | |
 | LIOB-BIP I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A) |
| Start quote request Documentation and Software | |
| 3D View | |
cba6222b52144860962d4b206cb02b6f | |
LIOB-553 | |
 | LIOB-BIP I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A) |
| Start quote request Documentation and Software | |
| 3D View | |
0ec3f981082f4d0d8a1cf9d4d0bc45c7 | |
LIOB-554 | |
 | LIOB-BIP I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor |
| Start quote request Documentation and Software | |
| 3D View | |
040798d7f41f4f51aac750c642a2d4fc | |
LPOW-2415A | |
 | LIOB-Connect Power Supply, 24 VDC, 15 W |
| Start quote request Documentation and Software | |
| 3D View | |
bf6ff2e52c15478091e6b057aec2452c | |
LPOW-2415B | |
 | Power supply unit with power connector 24 VDC, 15 W |
| Start quote request Documentation and Software | |
| 3D View | |
c2eacbb15ec04078becb106cf02fe7ed | |
L-MBUS20 | |
 | M-Bus level converter, interface for 20 M-Bus devices |
| Start quote request Documentation and Software | |
| 3D View | |
e652d00e44a64759a08508e069015c22 | |
L-MBUS80 | |
 | M-Bus Level Converter, Interface for up to 80 M-Bus devices |
| Start quote request Documentation and Software | |
| 3D View | |
d0a18d275fe64135826638032b3223e9 | |
LKNX-300 | |
 | KNX interface to connect KNX TP1 devices |
| Start quote request Documentation and Software | |
| 3D View | |
1a43e3eb71ca4d23b4e22a6805dd2bd9 | |
LENO-800 | |
 | EnOcean Interface 868 MHz Europe |
| Start quote request Documentation and Software | |
| 3D View | |
3388466f6f1d45adb75659c84b6eae7c | |
LENO-801 | |
 | EnOcean Interface 902 MHz USA/Canada |
| Start quote request Documentation and Software | |
| 3D View | |
eb7530e32b764531af31f5221b303fc3 | |
LENO-802 | |
 | EnOcean Interface 928 MHz Japan |
| Start quote request Documentation and Software | |
| 3D View | |
b35cd07b9a2c4caea8708199d97d7a84 | |
LWLAN-800 | |
 | Wireless LAN Interface IEEE 802.11bgn |
| Start quote request Documentation and Software | |
| 3D View | |
0cbc0ae8402248c6978a6b1769a2844b | |
LMPBUS-804 | |
 | MP-Bus Interface for 16 devices per channel, up to 4 channels |
| Start quote request Documentation and Software | |
| 3D View | |
b4e845276b3d4fb4afb7713433df6e55 | |
LSMI-800 | |
 | Standard Motor Interface for 16 motors via EXT port |
| Start quote request Documentation and Software | |
| 3D View | |
f73b956efe9a42ae92a66c4a2c2e953a | |
LSMI-804 | |
 | Standard Motor Interface for 64 motors, 4 SMI channels via USB |
| Start quote request Documentation and Software | |
| 3D View | |
da0579f69819419a9be87274db8907d0 | |
LTE-800 | |
 | LTE Interface |
| Start quote request Documentation and Software | |
| 3D View | |
58bb622cb29e45c1a28a9cd40a0e8603 | |
LRS232-802 | |
 | USB to 2x RS-232 Interface |
| Start quote request Documentation and Software | |
| 3D View | |
ae11a764f6c34a4eabd563f46bfd1ea1 | |
