The LIOB‑591 fan coil controller provides the basis for a revolutionary room automation system based on IP, which seamlessly integrates with native BACnet/IP networks at the controller level. Together with the L‑STUDIO software, room control solutions can be created with little effort. Integral parts of the room control system are a web‑based room operation via an LWEB‑802/803 dashboard and the automatic generation of graphics for the L‑VIS Touch Panel for local operation. LIOB‑591 Controllers implement the BACnet Building Controller (B-BC) profile and are BTL certified.
Our room controllers provide all common interfaces and a large number of physical I/Os for room automation projects. DALI lamps and DALI sensors are connected to the DALI interface with an integrated DALI power supply. Up to 16 SMI sunblind motors connect to an external SMI interface. Belimo valves connect to the external MP‑Bus interface. BACnet MS/TP devices connect to the RS‑485 interface, which can also be configured as a Modbus RTU interface to connect Modbus devices like energy meters or ekey finger scanners for access control or to connect the L‑STAT Room Control Unit. EnOcean devices connect to the external EnOcean interface. Dual Ethernet ports allow daisy-chaining of LIOB-591 controllers in a ring topology and provide BACnet/IP, Modbus/IP and OPC communication.
Optionally, the LIOB-591 can communicate via wireless LAN through the LWLAN‑800 wireless adapter connected to the USB port. 20 universal I/Os, one 1250 W and three 300 W TRIAC outputs connect various physical input and output devices. Our room automation library provides pre-built function modules for all lighting, heating, cooling, ventilation, sunblinds and access control via finger scanners. Built‑in SSL encryption ensures secure operation of the room automation system.
All typical room functions are supported:
- Lighting control with constant light controller
- Sunblind control with angle adjustment and year shade progression
- Temperature control for heating, cooling, and ventilation
- Occupancy detection
- Window monitoring and window contact
Features
- Room controller for 1 room segment
- Networking via redundant IP network
- Programmable with L-STUDIO (IEC 61131-3 or IEC 61499)
- Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑45x or LIOB‑55x)
- 128x64 graphic display with backlight for device configuration and maintenance
- Local display of device and data point information
- Manual operation using the jog dial or VNC Client
- Integrated AST™ functions (Alarming, Scheduling, and Trending) for each room segment
- Node.js support* for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)
- Event-driven e-mail notification
- Math objects to execute mathematical operations on data points
- Stores customized graphical pages
- Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
- Support of the L‑STAT Room Operator Panel
- Built-in OPC XML‑DA and OPC UA server
- Access to network statistics via SNMP
- Compliant with ANSI/ ASHRAE 135‑2012 and ISO 16484‑5:2012 standard
- Supports BACnet MS/TP, BACnet/IP and BACnet/SC
- BACnet Client Function (Write Property, Read Property, COV Subscription)
- BACnet Client Configuration with configuration tool (scan and EDE import)
- B-BC (BACnet Building Controller) functionality, BTL certified
- Integrated BACnet/ IP to BACnet/SC and BACnet MS/ TP
Router including BBMD as well as Slave-Proxy functionality - Modbus TCP and Modbus RTU/ASCII (Master or Slave)
- Integrated web server for device configuration and monitoring data points
- DALI integration of up to 64 DALI lamps
- Integrated DALI power supply, 16 V DC, 116 mA max. current
- Integrated 1250 W heater control
- Integrated dual fan motor control
- 8 x Universal I/O (U, I, R), 12 x Universal I/O (U)**
- Integrated heating/cooling valve control
- Configurable Bluetooth beacons and services: indoor navigation, asset tracking (requires LIC-ASSET license) and access to LWEB-900 room control solution
*requires L-IOT1 software license
**U: 0-10V input or 0-10V output, I: 4-20 mA input, R: resistance measurement
EnOcean Interface 868 MHz Europe EnOcean Interface 928 MHz Japan Wireless LAN Interface IEEE 802.11bgn LTE Interface Infrared remote control for room automation applications Quadruple DALI pushbutton coupler DALI Relay Modul, 8 channel LIOB-IP852 I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A) LIOB-IP852 I/O Module: 8 UI, 12 DI LIOB-IP852 I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A) LIOB-IP852 I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A) LIOB-IP852 I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor LIOB-BIP I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A) LIOB-BIP I/O Module: 8 UI, 12 DI LIOB-BIP I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A) LIOB-BIP I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A) LIOB-BIP I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure SensorLIOB-591 Room Controller Products

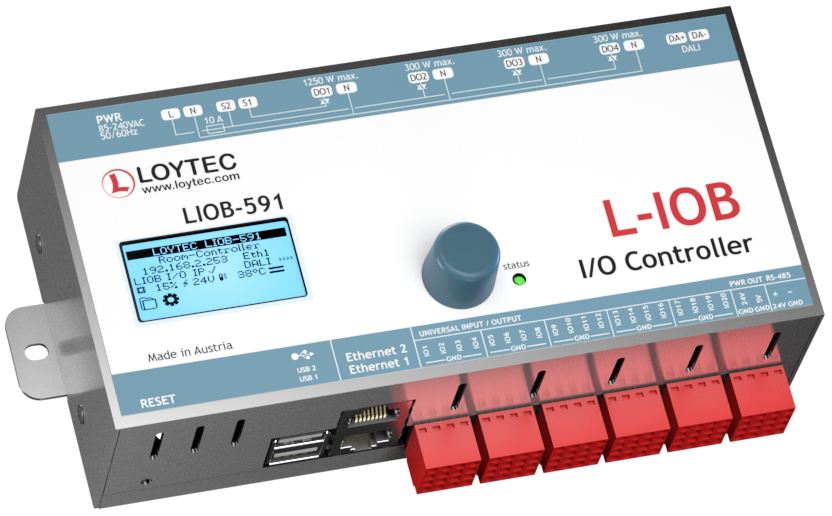

LIOB-591L-IOB Room Controller, 8x Universal I/O (U, I, R), 12x Universal I/O (U), 1x TRIAC 1250W, 3x TRIAC 300W
Start quote request
Documentation and Software
3D View
L-IOT1
Add-on Software License to enable IoT functionality on LIOB-585/586/587/588/589, LIOB-590/591/592/593/594/595/596, LIOB-AIR, and LINX-102/103/202/203 Start quote request Documentation and Software
L-STUDIO

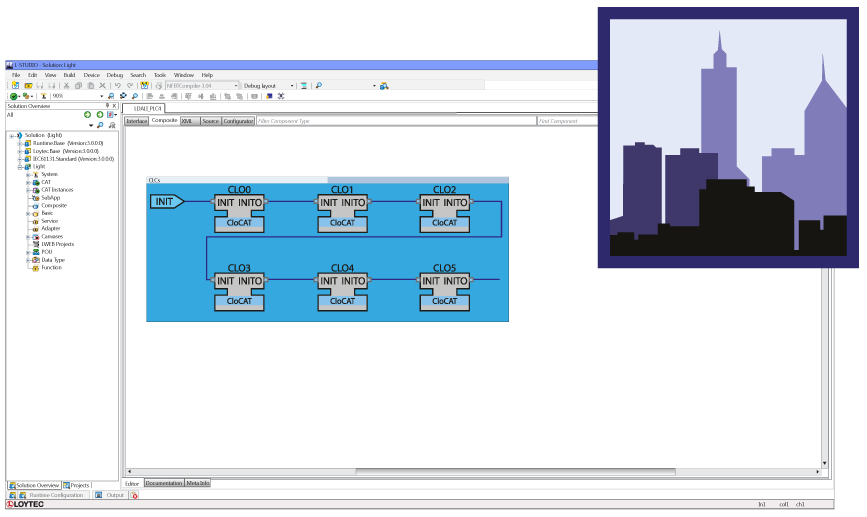

Development and integration platform for programmable LOYTEC controllers Start quote request Documentation and Software

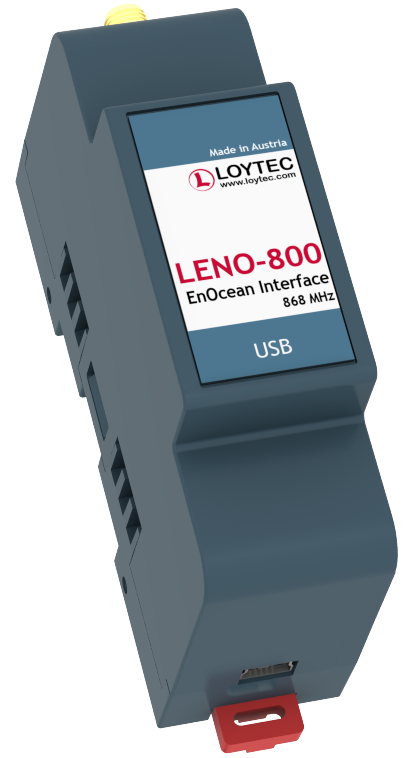

LENO-800
Start quote request Documentation and Software 3D View

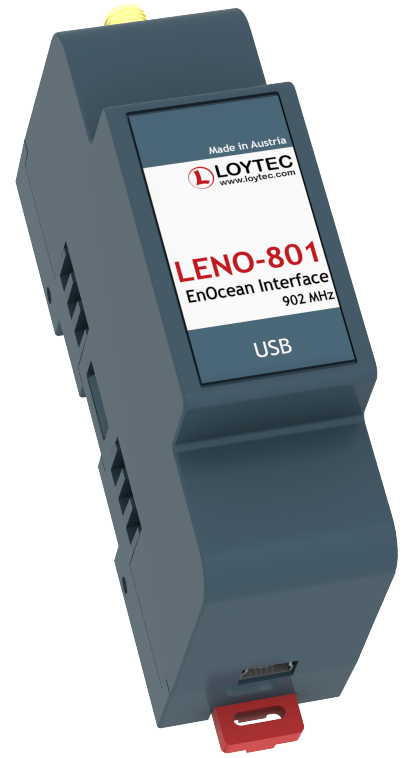

LENO-801
EnOcean Interface 902 MHz USA/Canada Start quote request Documentation and Software 3D View
LENO-802
Start quote request Documentation and Software 3D View

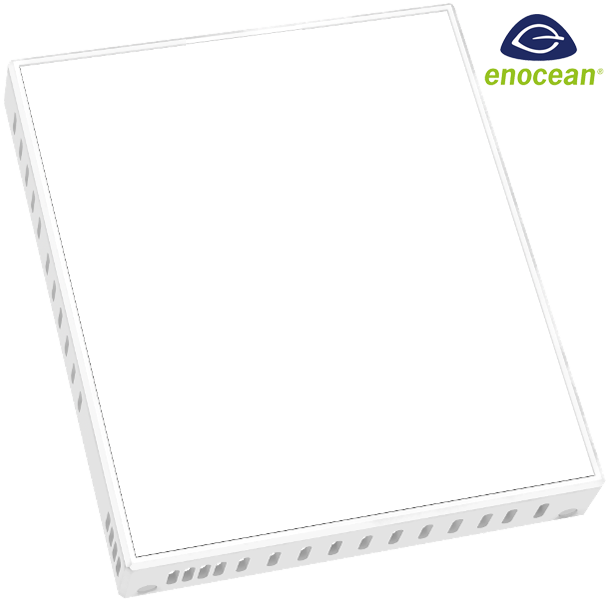

LSTAT-810-G3-L0
Remote EnOcean Antenna, Europe, White Start quote request Documentation and Software 3D View
LSTAT-820-G3-L0Remote EnOcean Antenna, USA/CA, White Start quote request Documentation and Software 3D View
LSTAT-830-G3-L0Remote EnOcean Antenna, Japan, White Start quote request Documentation and Software 3D View
LWLAN-800
Start quote request Documentation and Software 3D View

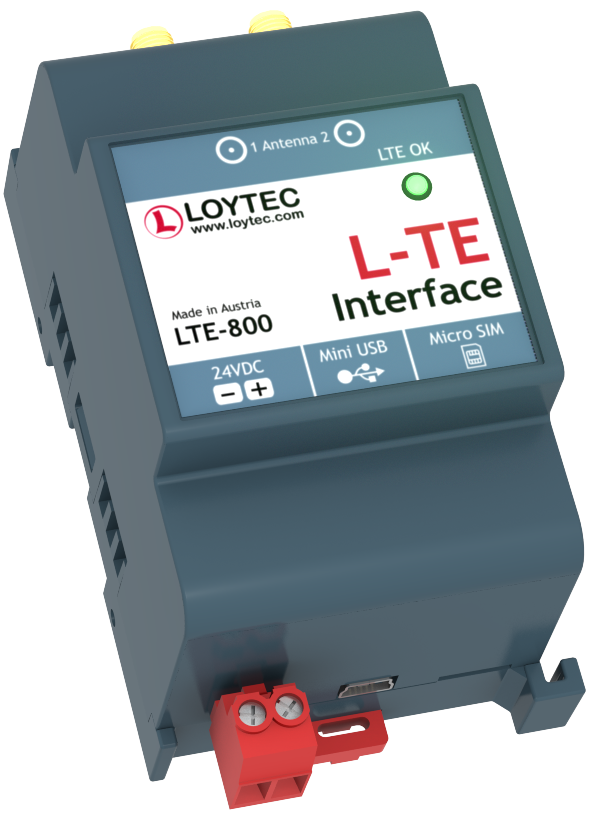

LTE-800
Start quote request Documentation and Software 3D View

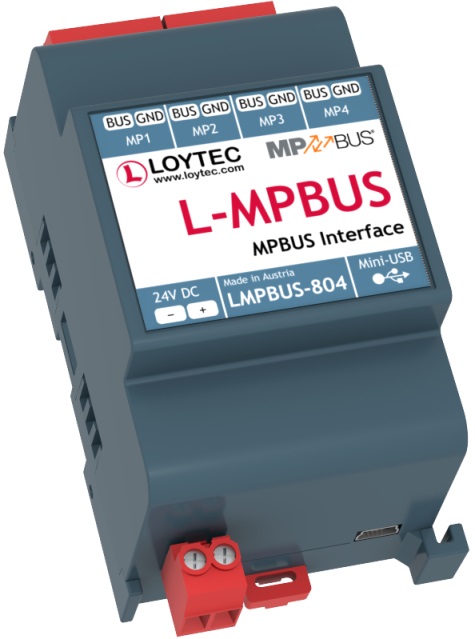

LMPBUS-804
MP-Bus Interface for 16 devices per channel, up to 4 channels Start quote request Documentation and Software 3D View

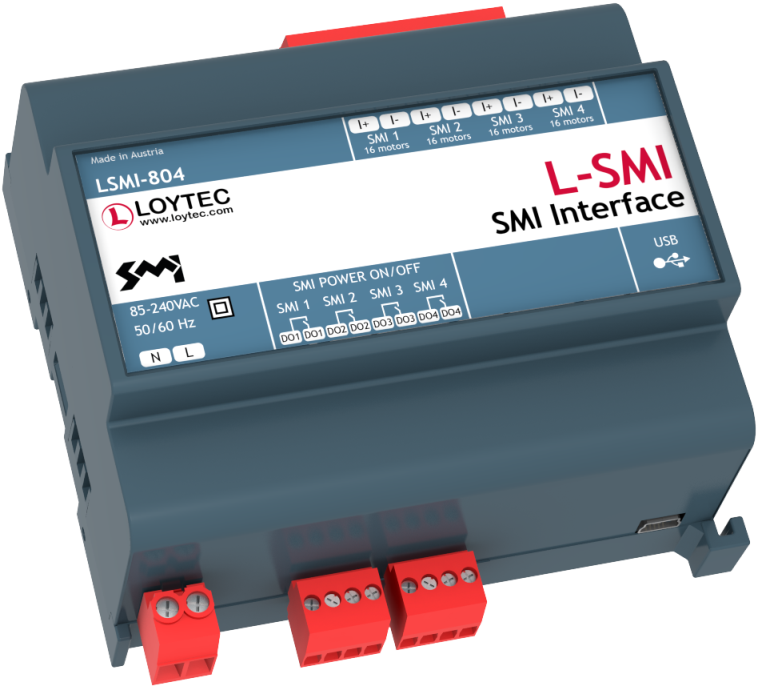

LSMI-804
Standard Motor Interface for 64 motors, 4 SMI channels via USB Start quote request Documentation and Software 3D View

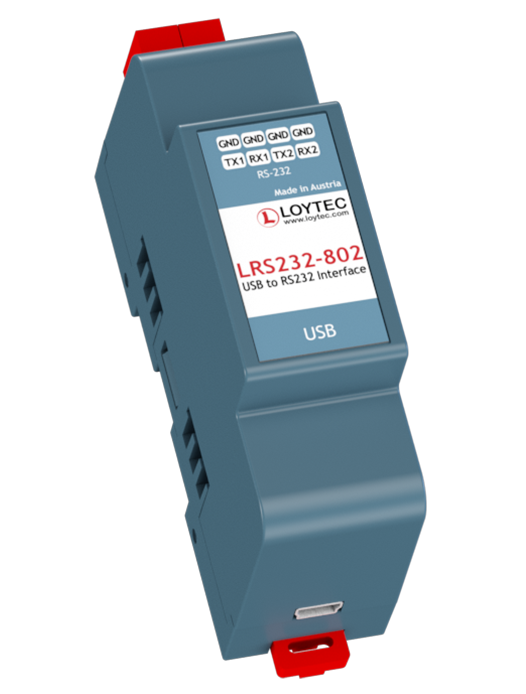

LRS232-802
USB to 2x RS-232 Interface Start quote request Documentation and Software 3D View
L-TEMP2

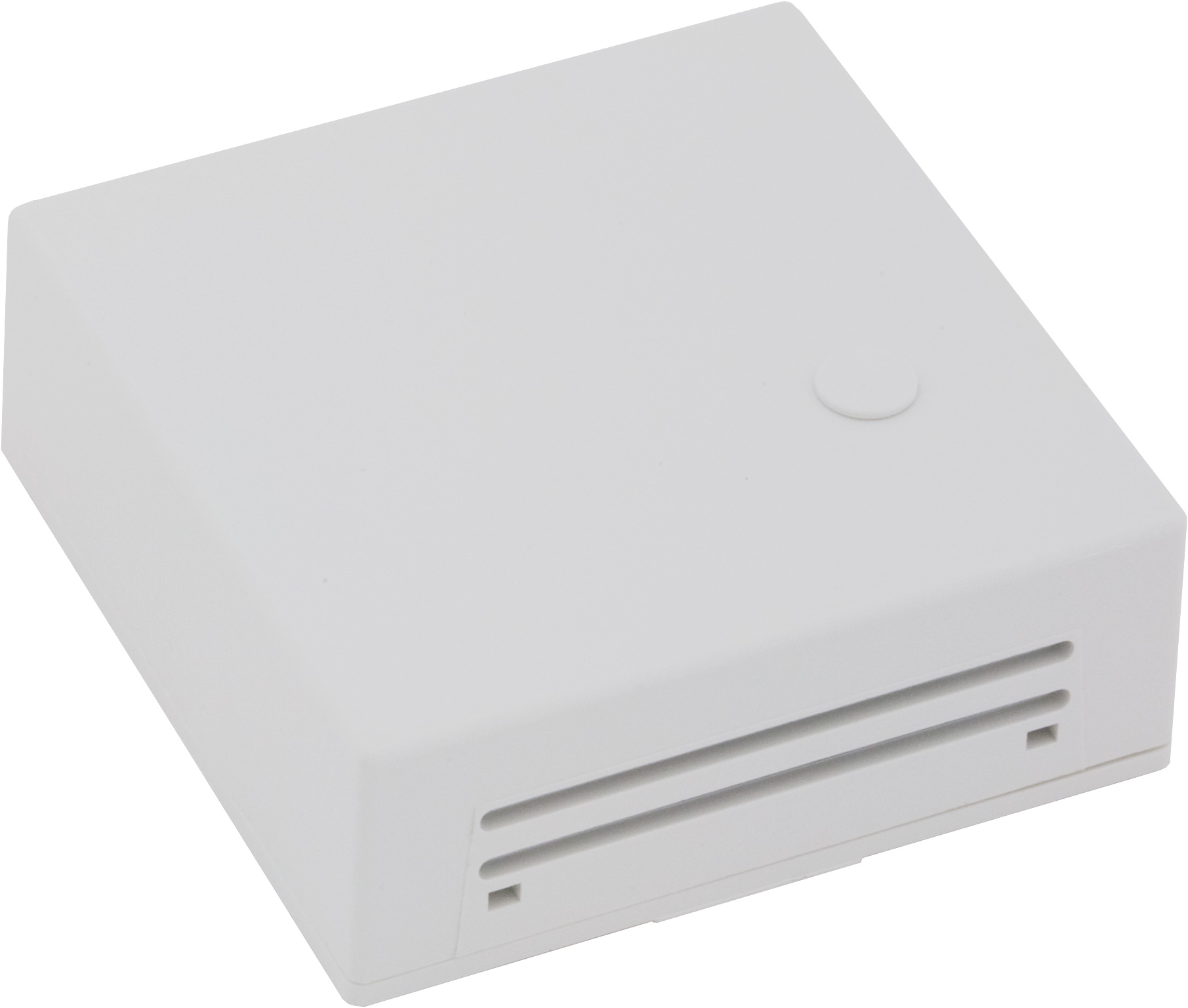

External temperature sensor (NTC10K) for use with L-IOB Universal Inputs Start quote request Documentation and Software
LDALI-MS2-BT
DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth), up to 12 m mounting height Start quote request Documentation and Software 3D View

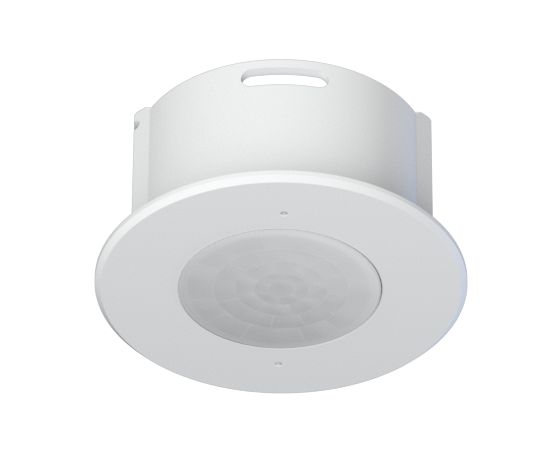

LDALI-MS4-BT
DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth, flat lens), up to 5 m mounting height Start quote request Documentation and Software 3D View
LIC-ASSET
LIC-ASSET, Add-on Software License to activate asset tracking Start quote request

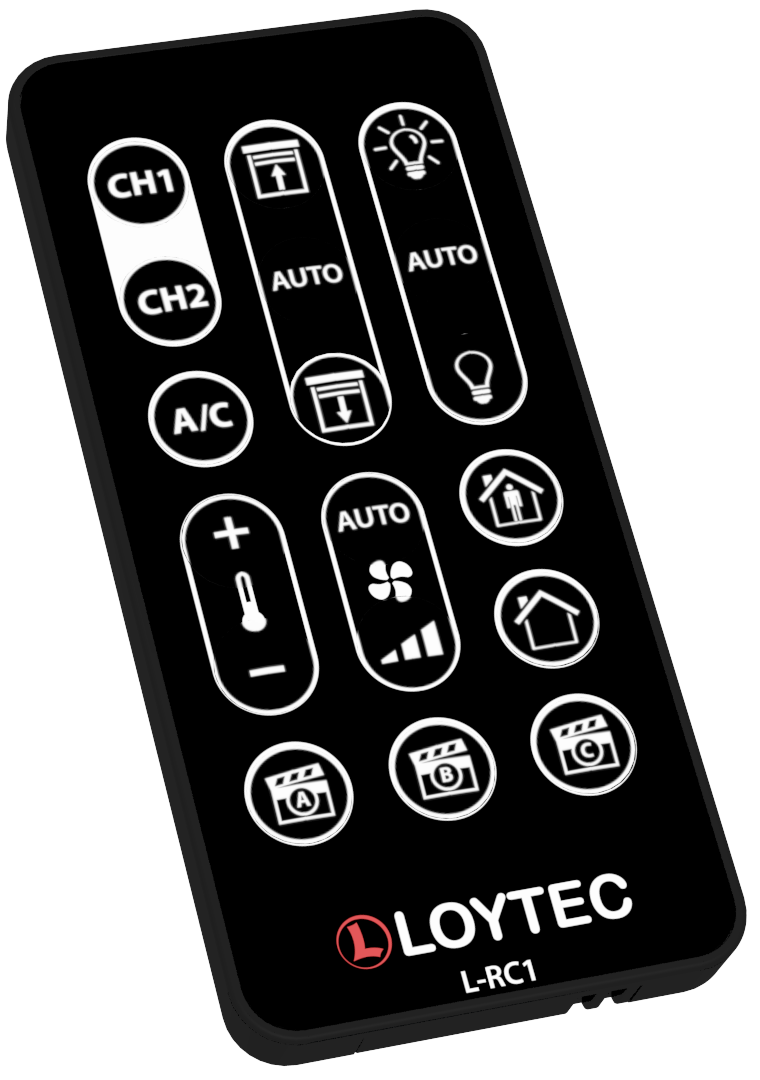

L-RC1
Start quote request Documentation and Software 3D View

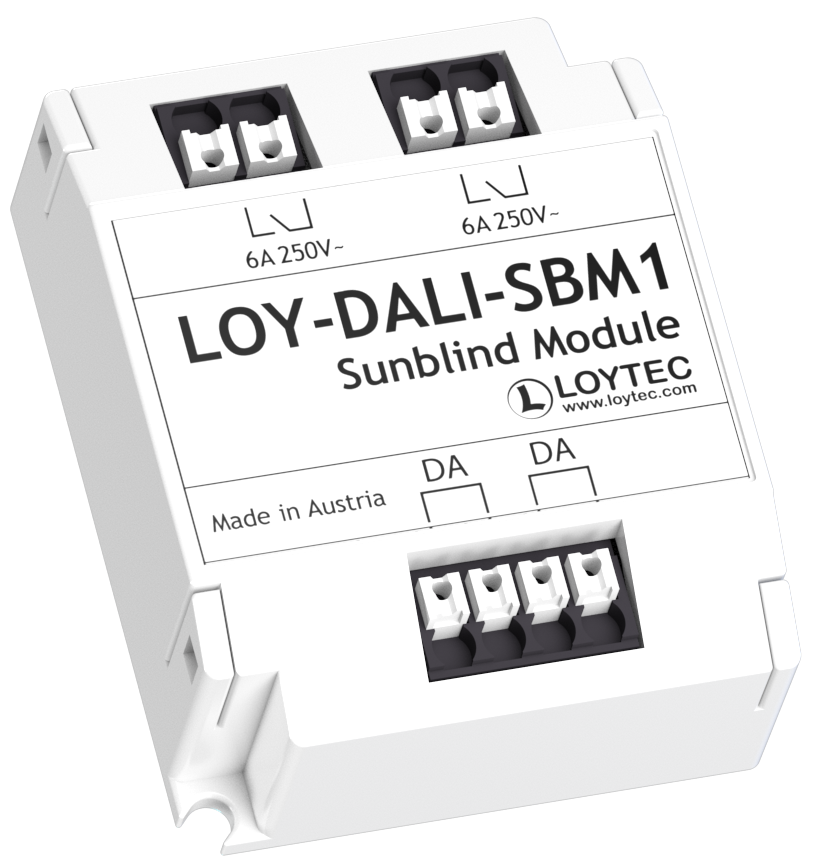

LOY-DALI-SBM1
LOY-DALI-SBM1 Sunblind Module Start quote request Documentation and Software 3D View

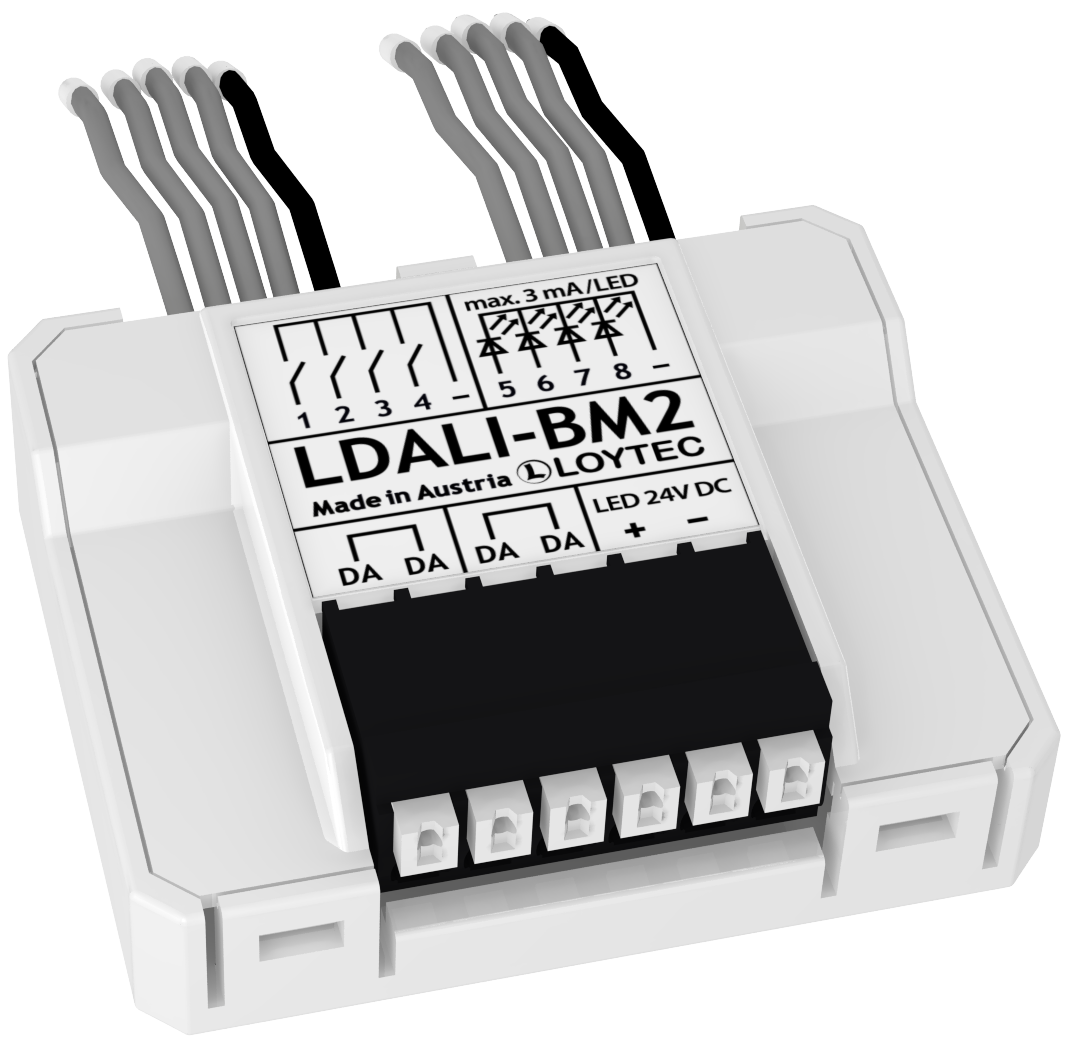

LDALI-BM2
Start quote request Documentation and Software 3D View

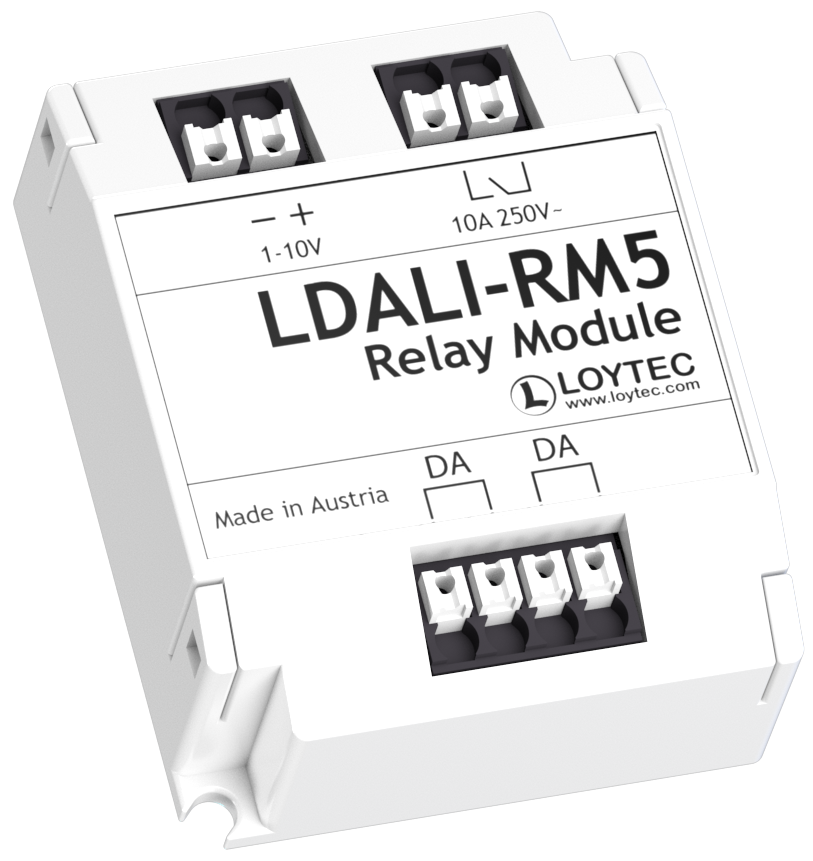

LDALI-RM5
DALI Relay Module 10 A, Analog Interface 1 – 10 V Start quote request Documentation and Software 3D View

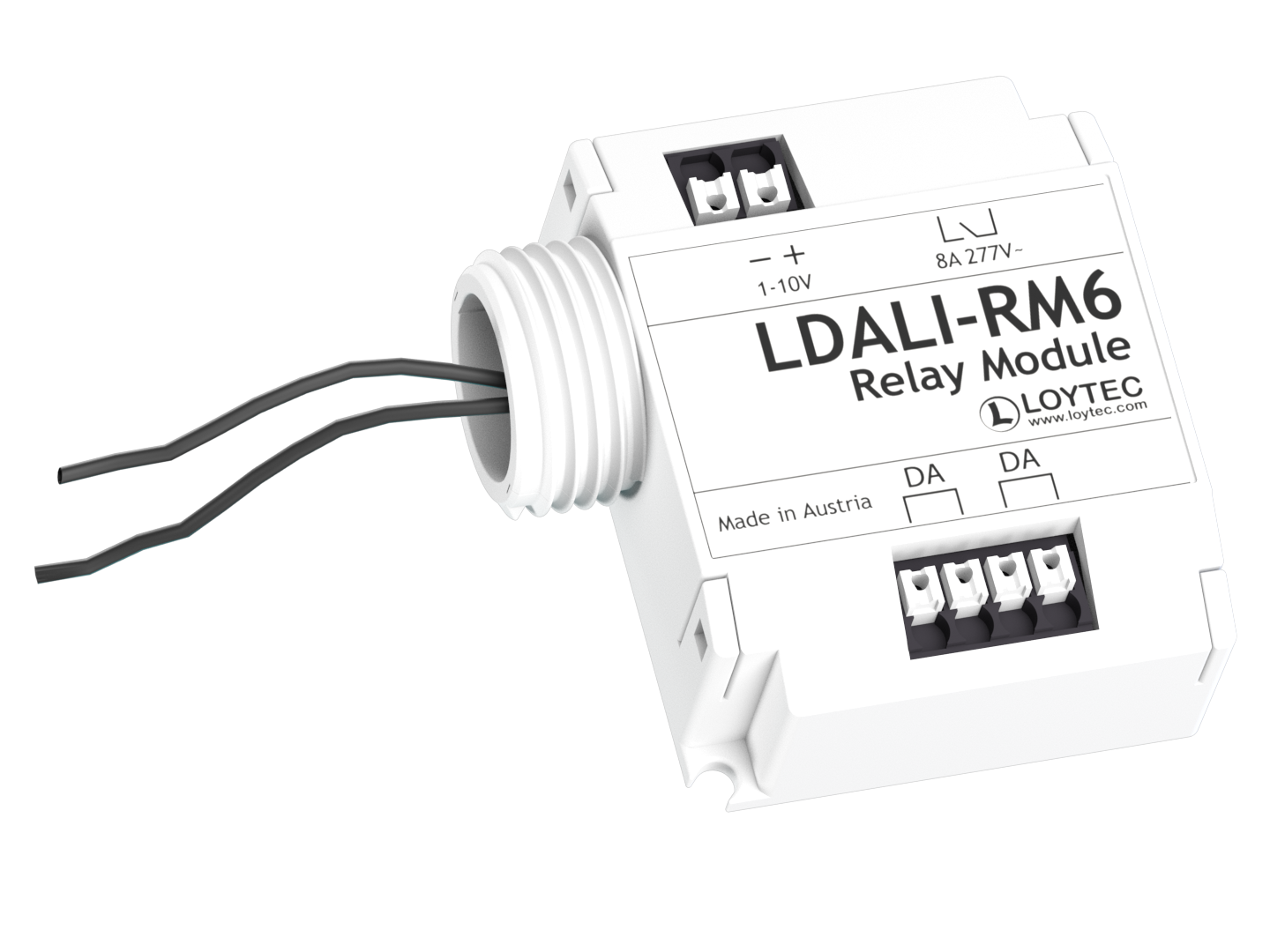

LDALI-RM6
DALI Relay Module 10 A, Analog Interface 1 – 10 V, “spud-mount” Start quote request Documentation and Software 3D View

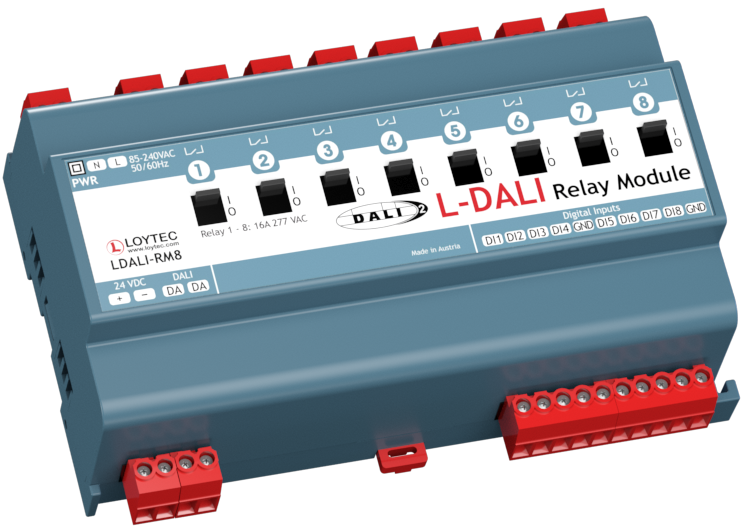

LDALI-RM8
Start quote request Documentation and Software 3D View
LDALI-PWM4
PWM module, DALI, 4 x 3 A LED outputs, 24 V DC ext. Start quote request Documentation and Software 3D View
LDALI-PWM4-TCPWM module tunable white, DALI, 4 x 3 A LED outputs, 24 V DC ext. Start quote request Documentation and Software 3D View
LDALI-PWM4-RGBWPWM module RGBW, DALI, 4 x 3 A LED outputs, 24 V DC ext. Start quote request Documentation and Software 3D View
LDALI-PD1
DALI Phase-Cut Dimmer Module Start quote request Documentation and Software 3D View

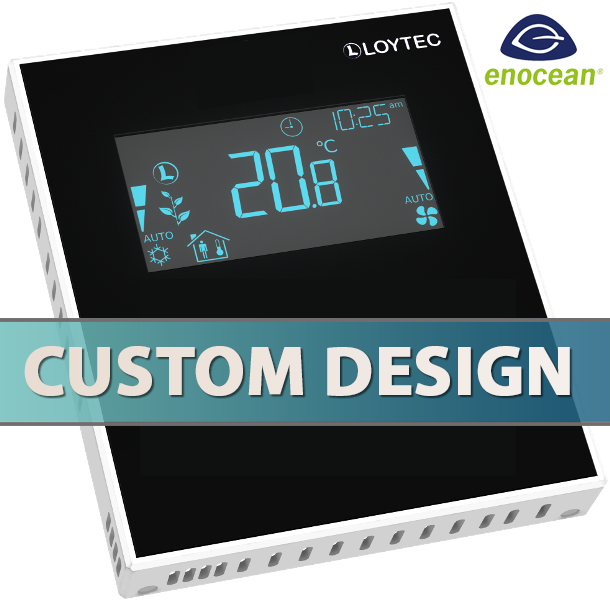

LSTAT-810-GX-LX-CU
LSTAT-800 based custom design, includes EnOcean interface, minimum quantity 100 pcs, enclosure G1: silver, G2: black, G3: white; custom print Lx, including 2 working samples, lead time 10 weeks (needs LSTAT-80x-CUSTOM) Start quote request Documentation and Software 3D View
LSTAT-812-GX-LX-CULSTAT-802 based custom design, includes EnOcean interface, minimum quantity 100 pcs, enclosure G1: silver, G2: black, G3: white; custom print Lx, including 2 working samples, lead time 10 weeks (needs LSTAT-80x-CUSTOM) Start quote request Documentation and Software 3D View

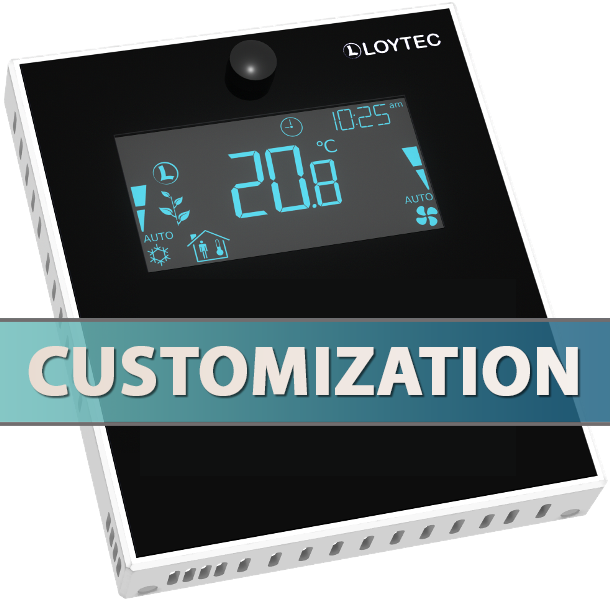

LSTAT-80x-CUSTOM
One-time customization cost for L-STAT custom design, including 2 working samples Start quote request Documentation and Software

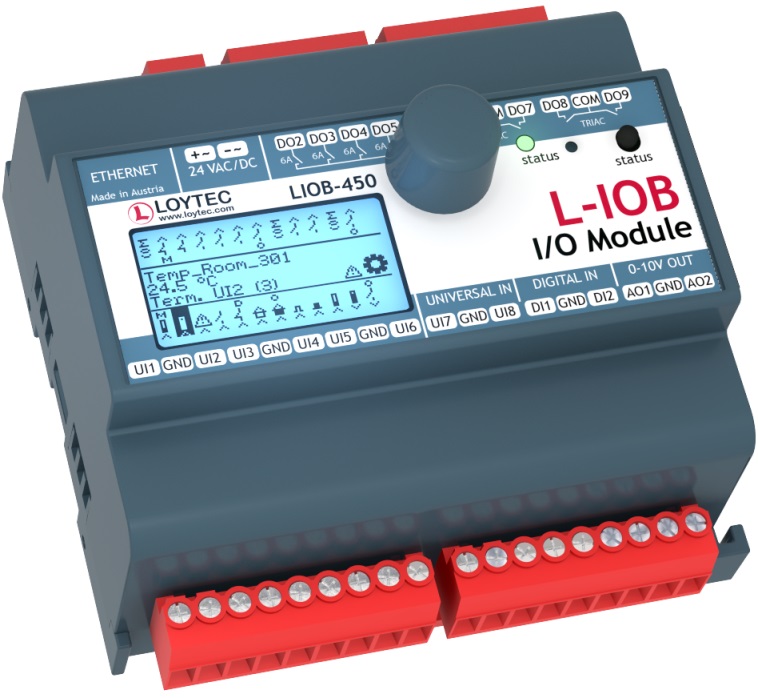

LIOB-450
Start quote request Documentation and Software 3D View
LIOB-451
Start quote request Documentation and Software 3D View
LIOB-452
Start quote request Documentation and Software 3D View
LIOB-453
Start quote request Documentation and Software 3D View

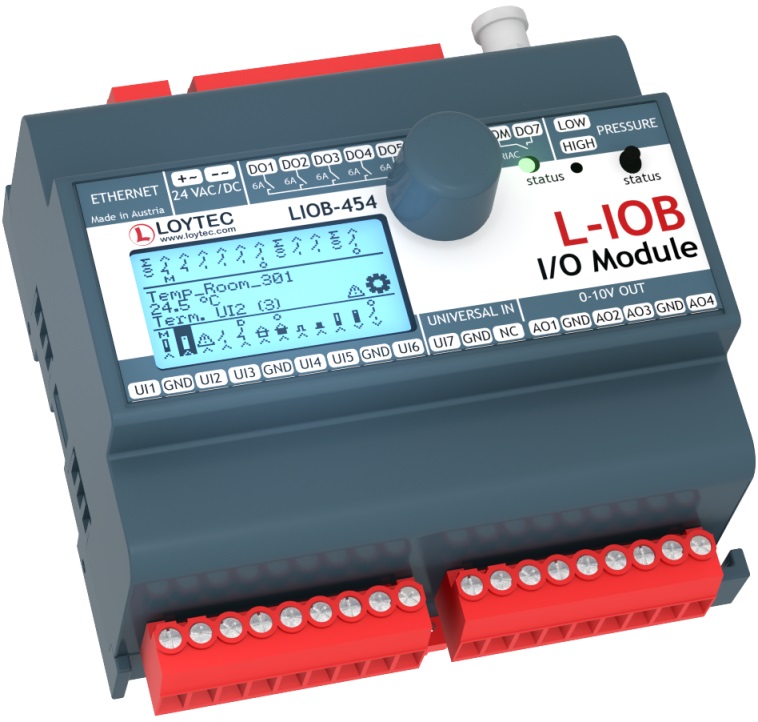

LIOB-454
Start quote request Documentation and Software 3D View

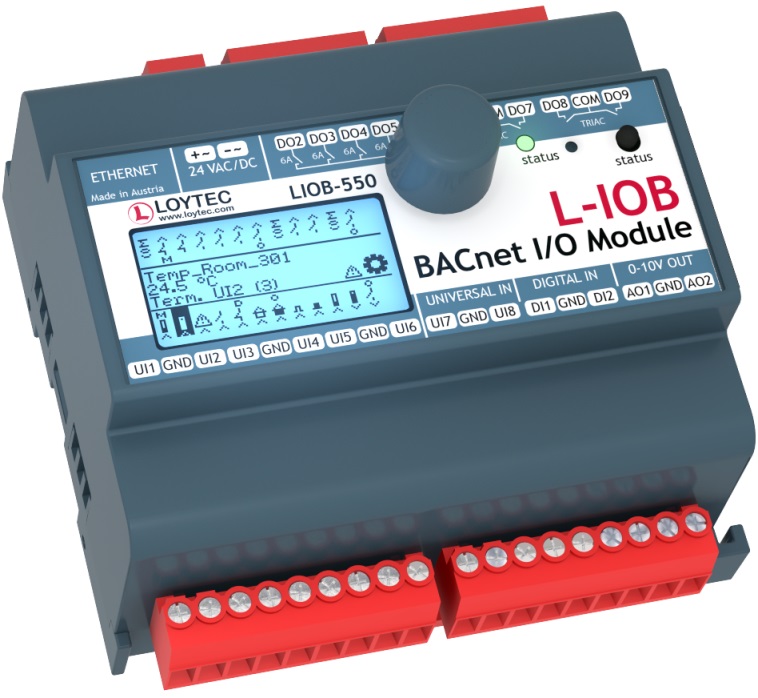

LIOB-550
Start quote request Documentation and Software 3D View
LIOB-551
Start quote request Documentation and Software 3D View
LIOB-552
Start quote request Documentation and Software 3D View

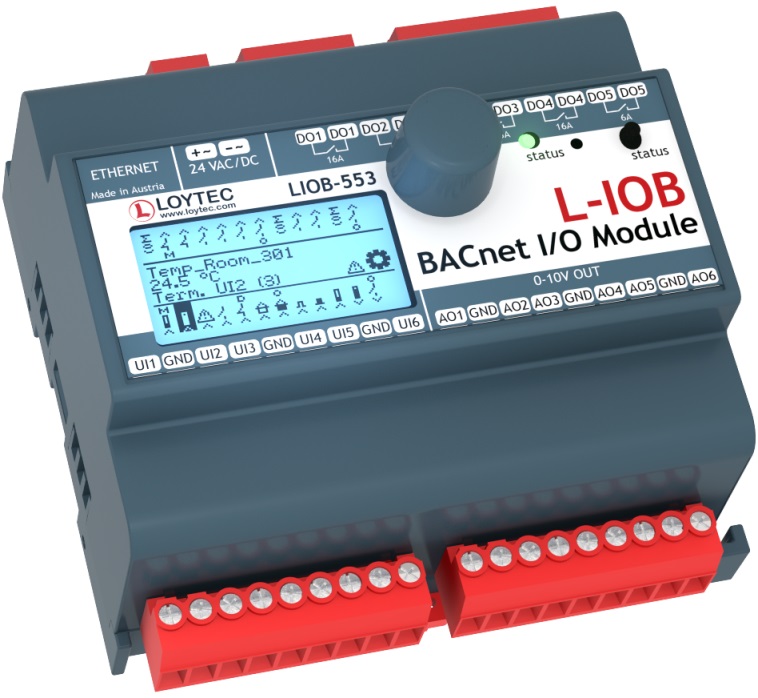

LIOB-553
Start quote request Documentation and Software 3D View

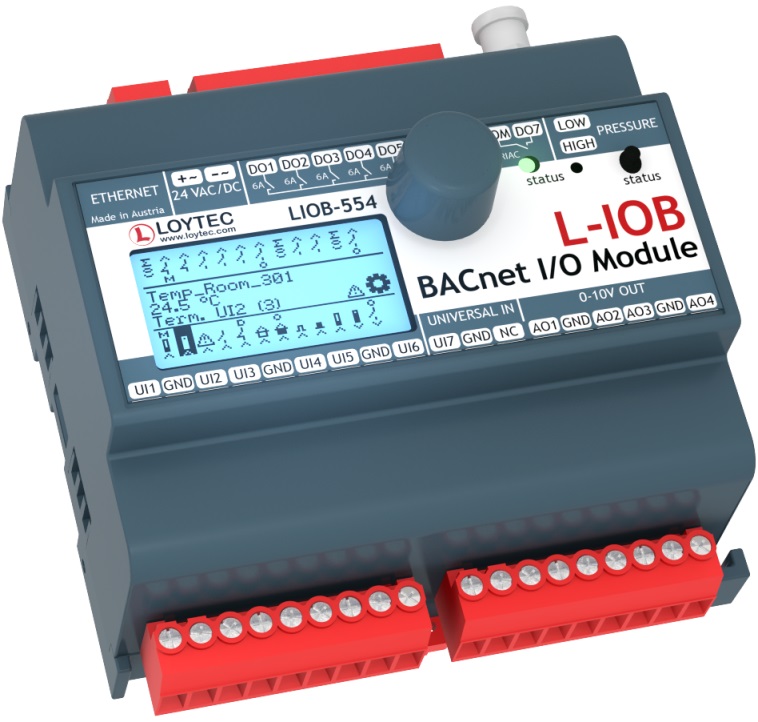

LIOB-554
Start quote request Documentation and Software 3D View

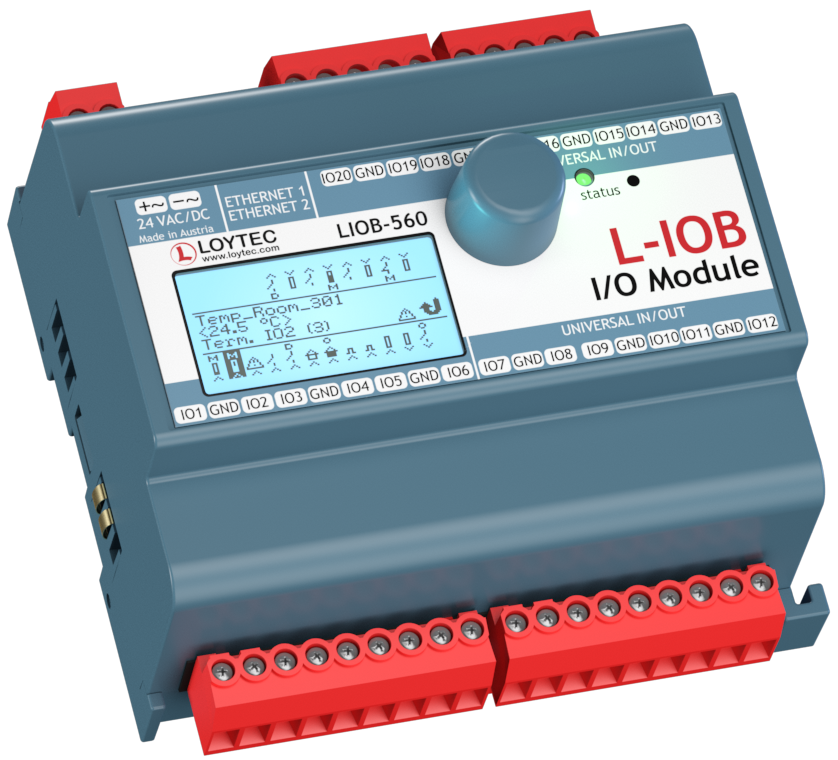

LIOB-560
LIOB-BIP I/O Modul: 20 Universal I/O (IO) Start quote request Documentation and Software 3D View

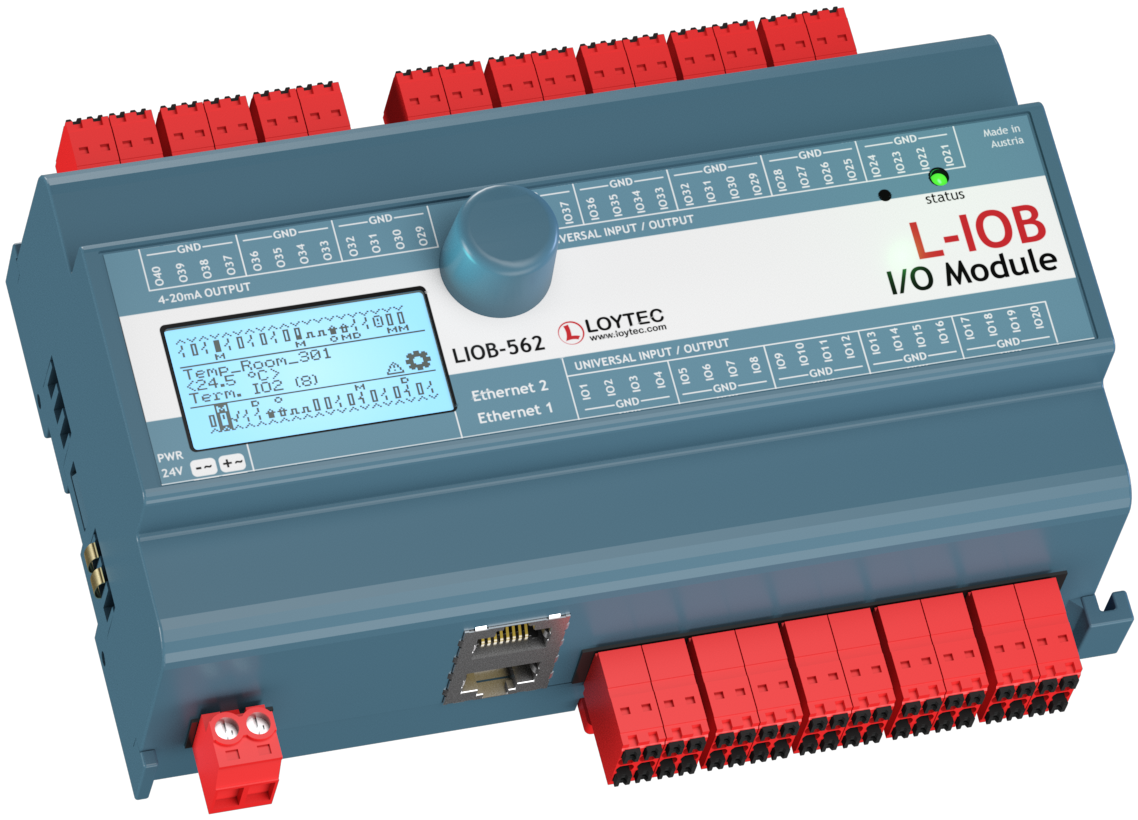

LIOB-562
