LOY-SPE2 Dual Single-Pair-Ethernet Converter

The LOY-SPE2 is a dual SPE (Single-Pair-Ethernet) converter. It contains two independent Ethernet (10BASE-T) to SPE (10BASE-T1L, IEEE 802.3cg) converters.

On the SPE side, devices up to 1000 m away can be connected, depending on the cable quality. The transfer rate of 10 Mbit/s allows to connect control gear in remote places while still having reasonable transfer speeds. The converter does not need any manual configuration due to its auto negotiation capabilities on both, Ethernet and SPE.

The LOY-SPE2 is well suited for:

• Retrofit applications: Reuse existing single-pair wires for modern control devices.
• Remote sites: Extend an existing network by up to 1000 m.

With the LOY-SPE2, it is easily possible to reuse existing cables for modern IP-based controllers without requiring expensive cabling.

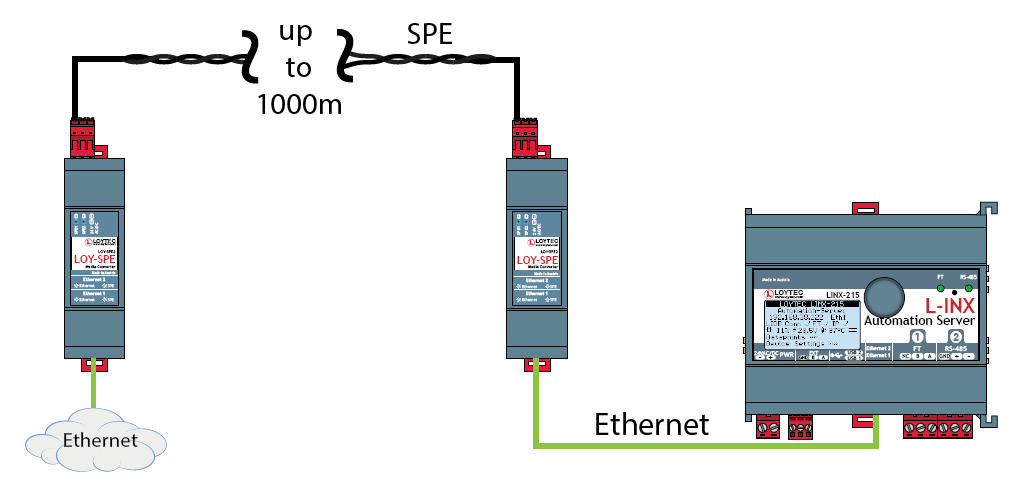

LOY-SPE Use Case 1: Remote device

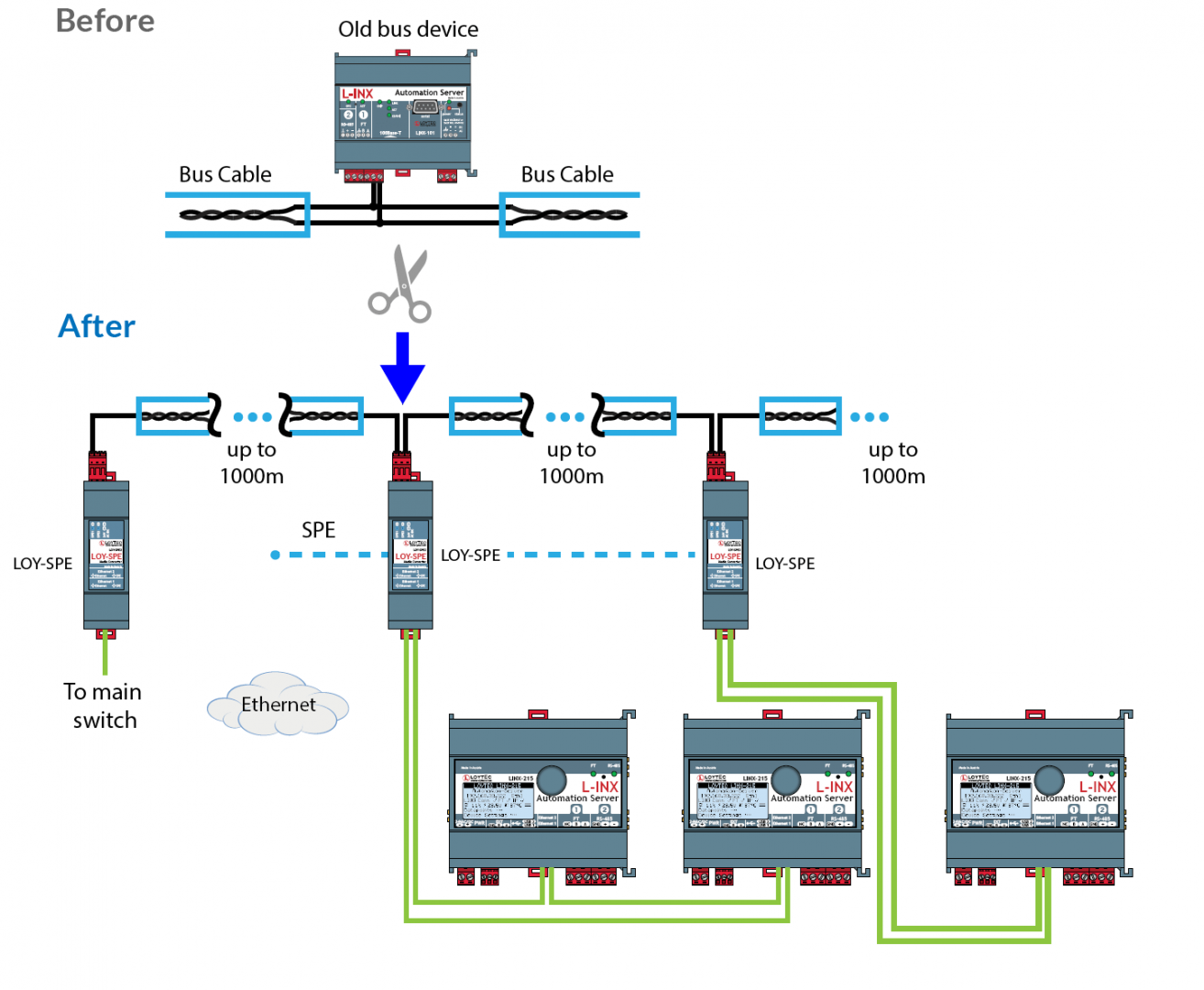

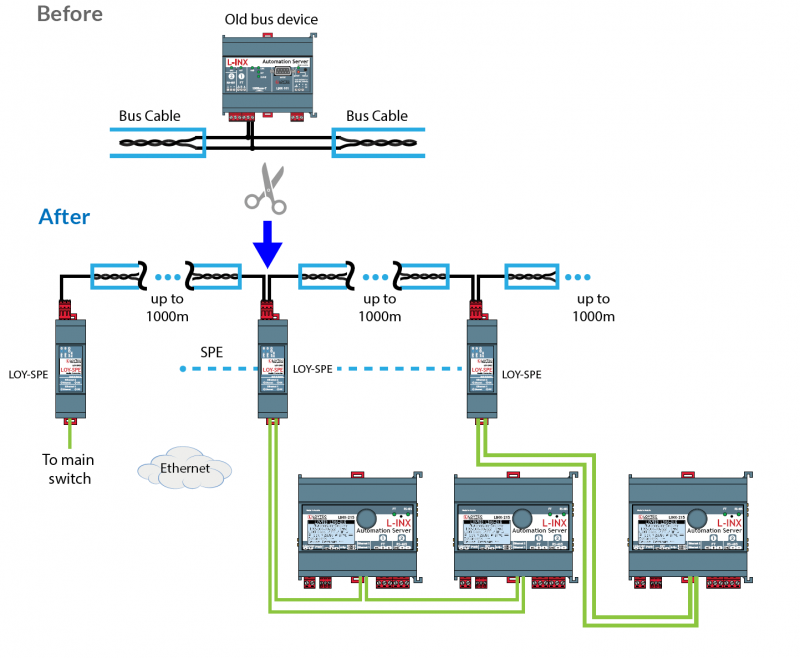

LOY-SPE Use Case 2: Reuse existing single pair bus

Features

• Dual SPE (Single-Pair-Ethernet, 10BASE-T1L, IEEE 802.3cg) to Ethernet (10BASE-T) converter/interface
• Plug and Play (Auto negotiation on SPE & Ethernet side)
• SPE cable length up to 1000 m (depending on cable quality).
• Connection type (SPE): Point-to-Point

LOY-SPE2 Dual Single-Pair-Ethernet Converter Products
LOY-SPE2
	Dual Single-Pair-Ethernet Converter (expected availability: Q4 2024)
